Fully automatic, on turntable

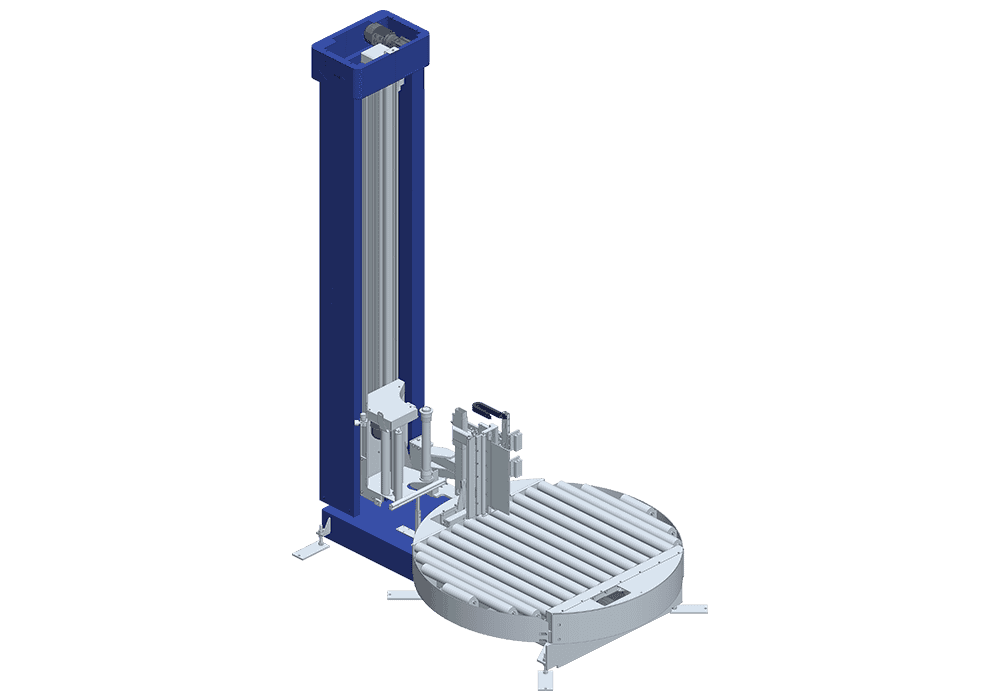

The AV300 is a turntable stretcher with motorized rollers and is perfect for palletized and non-palletized goods in automated conveyor lines. It wraps up to 35 pallets per hour. The movement is transmitted via a chain that is controlled by a frequency converter. This enables smooth acceleration, controlled braking and variable rotation speed.

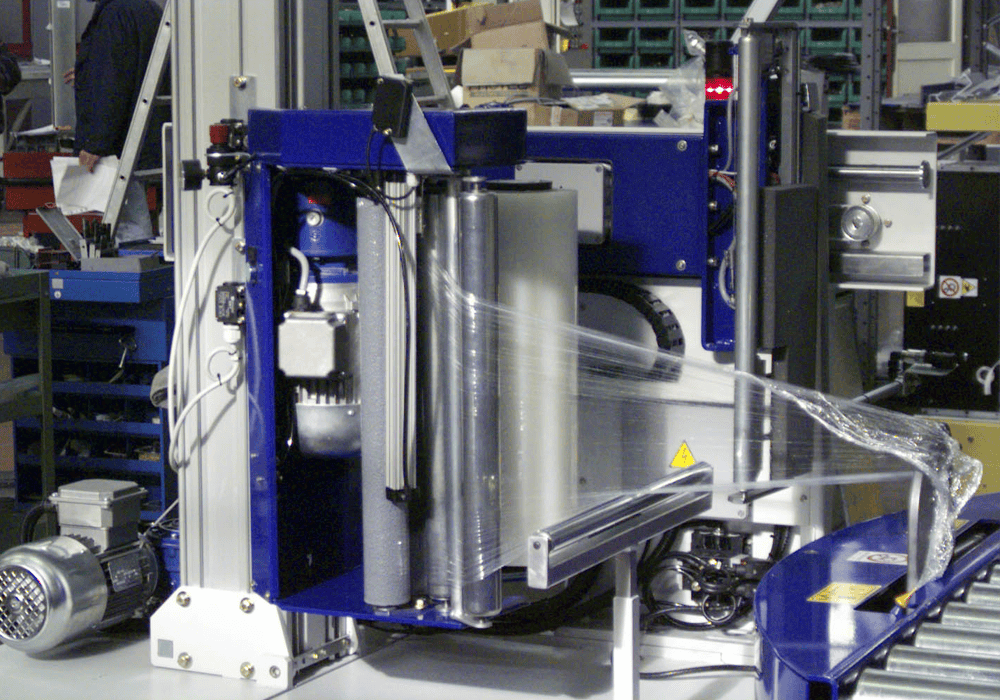

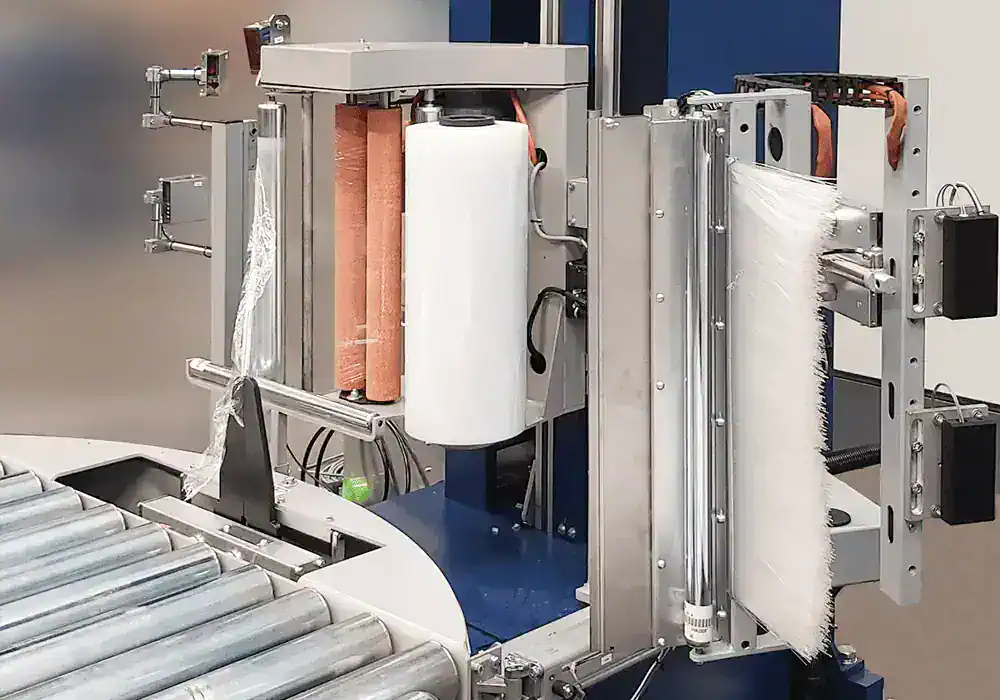

The cutting and sealing unit is mounted on a pneumatically driven arm. This means that the film is always cut in the same place, even if the dimensions of the pallets change. The AV300 can be extended with useful accessories such as a small press, a cover plate dispenser or a tape adapter.

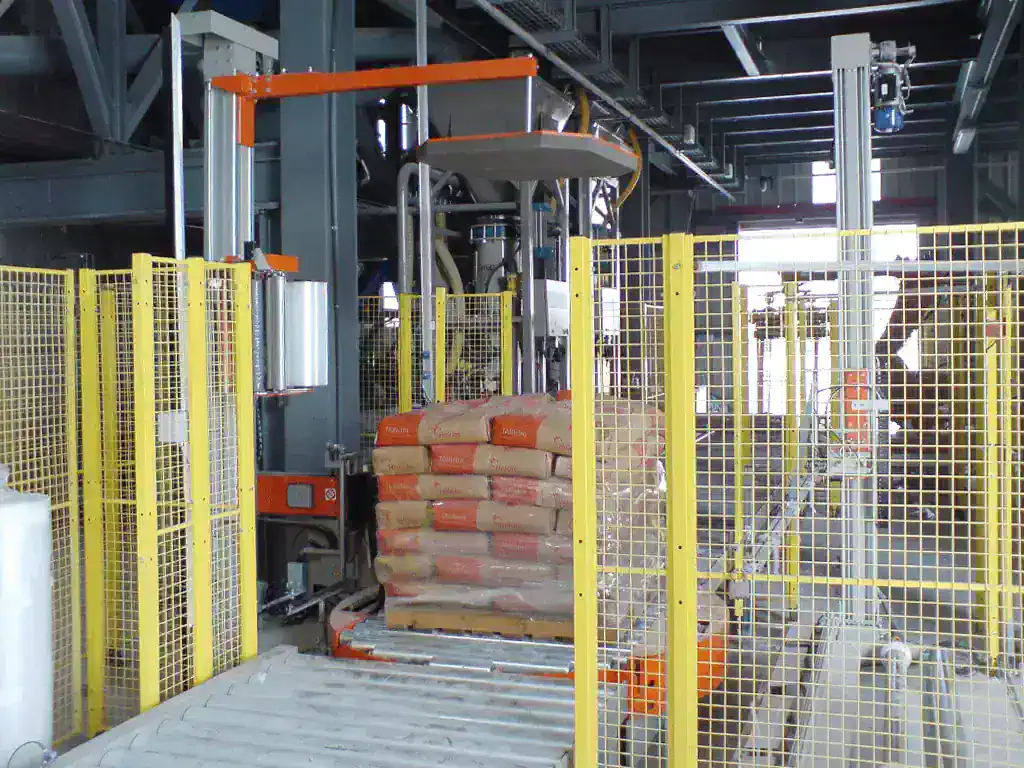

Ideal for automated conveyor lines in logistics, production, the food and beverage industry and wholesale. Perfect when high throughput and reliable, automatic load securing are required.
Optimize your packaging processes with the AV300 fully automatic machine. Request your individual offer today and increase the efficiency and quality of your pallet wrapping.
1800 mm
500 mm
20 rpm.
max. 1200 x 1000 x 1800 mm
2000 kg
2770 x 1800 x 2980 mm
980 kg
400 V / 50 Hz, 3-phase
5.5-6.5 bar
Fully automatic turntable stretchers are used in logistics centers, in the food and beverage industry, in wholesale and in the manufacturing industry to safely stabilize pallet loads and offer advantages such as time savings, uniform load securing and reduced material costs.
Turntable diameter
Turntable diameter
1800 mm
Turntable diameter
–
Turntable diameter
1650 mm / 1650 mm HSD / 1800 mm / 2200 mm
(depending on version/equipment)
Turntable diameter
1500 mm / 1500 mm HSD / 1650 mm / 1800 mm / 2200 mm
(depending on version/equipment)
Turntable diameter
1650 mm / 1650 mm HSD / 1800 mm / 2200 mm
(depending on version/equipment)
Turntable diameter
1650 mm
Turntable diameter
1220 mm
Turntable diameter
–
Turntable height
Turntable height
500 mm
Turntable height
–
Turntable height
75 mm
Turntable height
73.7 mm
Turntable height
75 mm
Turntable height
23 mm
Turntable height
95 mm
Turntable height
–
Speed
Speed
20 rpm.
Speed
approx. 400 Euro pallets (with one battery charge)
Speed
6 - 12 rpm
Speed
6 - 12 rpm
Speed
6 - 12 rpm
Speed
4 - 12 rpm
Speed
13 rpm.
Speed
Up to 54 rpm.
Pallet size (L x W x H)
Pallet size (L x W x H)
max. 1200 x 1000 x 1800 mm
Pallet size (L x W x H)
min. 500 x 400 x 2100/2600 mm
max. 6000 x 7000 x 2100/2600 mm
(depending on version/equipment)
Pallet size (L x W x H)
1000-1550 x 1200-1550 x 2200/2600/3000
(depending on turntable/version/equipment)
Pallet size (L x W x H)
800-1550 x 1200-1550 x 2100/2400 mm
(depending on turntable/version/equipment)
Pallet size (L x W x H)
1000-1550 x 1200-1550 x 2200/2600/3000 mm
(depending on turntable/version/equipment)
Pallet size (L x W x H)
1200 x 1000 x 2500 mm
Pallet size (L x W x H)
1200 x 1000 x 2200 mm
Pallet size (L x W x H)
1600 x 1600 x 2000 mm
Load
Load
2000 kg
Load
Load
max. 1200 kg / 2400 kg
(depending on version/equipment)
Load
max. 1200 kg / 2400 kg
(depending on version/equipment)
Load
max. 1200 kg / 2400 kg
(depending on version/equipment)
Load
max. 1200 kg
Load
max. 2000 kg
Load
2000 kg (with conveyor system)
Dimensions (L x W x H)
Dimensions (L x W x H)
2770 x 1800 x 2980 mm
Dimensions (L x W x H)
1482 x 1255 x 2439 mm
Dimensions (L x W x H)
2881 x 1650 x 2279 mm
(depending on version/equipment)
Dimensions (L x W x H)
2440 x 1500 x 2420 mm
(depending on version/equipment)
Dimensions (L x W x H)
2903 x 1650 x 2214 mm
(depending on version/equipment)
Dimensions (L x W x H)
2828 x 1650 x 2582 mm
Dimensions (L x W x H)
5753 x 5215 x 3601 mm
Dimensions (L x W x H)
3100 x 3100 x 3990 mm
Weight
Weight
980 kg
Weight
335 kg (with film carriage M + LP)
316 kg (with film carriage FM)
Weight
Weight
400 kg
Weight
500 - 725 kg
(depending on version/equipment)
Weight
500 kg
Weight
1150 kg
Weight
1680 kg
Operating voltage
Operating voltage
400 V / 50 Hz, 3-phase
Operating voltage
230 V / 50 Hz / 1 Ph
(for charger)
Operating voltage
220/240 V 50/60Hz 1 Ph
400 V 50/60 Hz 3 Ph + N
Operating voltage
220/240 V 50/60Hz 1 Ph
380/415 V 50/60 Hz 3 Ph + N
Operating voltage
220/240 V 50/60Hz 1 Ph
400 V 50/60 Hz 3 Ph + N
Operating voltage
230 V / 50 Hz / 1 Ph
Operating voltage
400 V / 50 Hz
Operating voltage
400 V / 50 Hz
Compressed air
Compressed air
5.5-6.5 bar
Compressed air
–
Compressed air
–
Compressed air
–
Compressed air
–
Compressed air
–
Compressed air
5.5-7 bar
Compressed air
5.5-6.5 bar
Foil slide
Foil slide
Foil slide
M: Mech. Brake with quick release
FM: Electromagnetic brake
LP: Motorized pre-stretch (200/240%)
Foil slide
M: Mech. Brake with quick release
FM: Electromagnetic brake
LP: Motorized pre-stretch (150/200/250/300%)
Foil slide
EM: Mech. Brake (simple design)
M: Mech. Brake with quick release
FM: Electromagnetic brake
SM: Mechanical pre-stretching (30/60/90%)
LP: Motorized pre-stretch (150/200/240%)
Foil slide
FM: Electromagnetic brake
PW: Motorized pre-stretching (200% ex works) with cut-off and contact system
PWT: PW with cut-off system
PW 750: Power PreStrech
DM: Double motor (pre-expansion up to 400%)
Foil slide
FE or
OPS 200%
Foil slide
Foil slide
