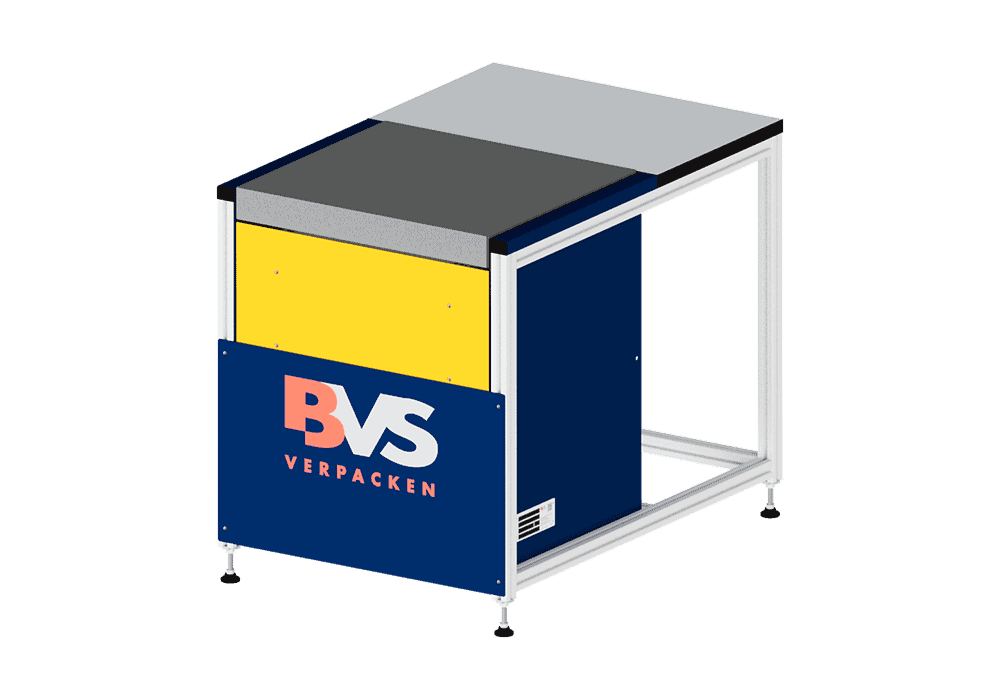

Lifting unit Lifter 650 PN

Pneumatic

Pneumatic lifting unit for lifting and lowering products
Ideal for high cardboard boxes
incl. mudguards and textured chrome steel plate
For heavy products up to 60 kg
Platform size W x D: 650 x 570 mm
Fixed stroke 250 mm

Description

Technical data

Integration options

Options/accessories

Areas of application

Lifting unit integrated in single packing table

Lifting unit integrated in single packing table with scales

Pneumatic lifting unit for ergonomic lifting and lowering of heavy packaged goods and cardboard boxes

The pneumatic lifting unit is the ideal solution for ergonomically lifting and lowering heavy packaged goods or large cardboard boxes directly at the packing station or conveyor belt. Thanks to its sturdy frame made of modular aluminum profiles and its robust sheet steel cladding, it is ideal for continuous industrial use.

The platform is moved into the upper or lower position via a powerful pneumatic cylinder. It is conveniently operated by foot switch, which enables safe and time-saving work in the daily packaging process. Two protective plates at the front provide reliable protection against crushing hazards.

Product highlights

Pneumatic lifting unit for cardboard boxes and packages up to 60 kg
Ergonomic working thanks to height-adjustable platform (250 mm stroke)
Foot switch operation for convenient and safe handling
Sturdy construction with aluminum profiles and sheet steel cladding
Platform size: 650 x 570 mm, ideal for larger products
Integrated mudguards for maximum safety in the workplace

Optimize your packaging process now with the pneumatic lifting unit - ergonomic, efficient and safe. Enquire now and increase your productivity!

System width

650 mm

System depth

570 mm

Table width

730 mm

Table depth

1050 mm

Working height (top edge of table)

min. 870 mm +/- 30 mm (leveling feet)

Stroke

250 mm

Lifting speed

120 mm/s

Load capacity

max. 60 kg

Drive

Pneumatic cylinder

Compressed air

6 bar

Power supply

230V / 50Hz / 2.4A

Customized dimensions on request
Can be integrated into the BVS packing table system
Integration of weighing systems possible
Choice of shelf design: textured chrome steel sheet or roller conveyor
Stepped side panels (structure of the unit changes visually, additional protective plates)

Lifting units are used in the packaging industry, logistics, production, warehousing and goods receiving areas, where they are particularly suitable for high cardboard boxes and support ergonomic working.
