The film packaging machines in the Compacta series are suitable for both fully automatic and semi-automatic packaging. In inline operation, a light barrier control system enables both manual and fully automatic loading. Up to 120 three-sided sealed packs per minute can be produced in conjunction with a half-tube film. Thanks to permanently heated sealing systems, all commercially available films from polyethylene to polyolefin and PVC can be processed. Even the finest weld seams are possible: with polyolefin film and the BVM cutting knife, they are perfect. The Compacta can be converted quickly and easily using motors without handwheels.
Compacta 5022: max. 120 packs/min
Compacta 7522: max. 60 packs/min
Compacta 1022: max. 45 packs/min
(depending on product and film)
Compacta 5022: max. 450 x 220 mm (W x H)
Compacta 7522: max. 700 x 220 mm (W x H)
Compacta 1022: max. 950 x 220 mm (W x H)
Compacta 5022: 650/650 mm
Compacta 7522: 850/850 mm
Compacta 1022: 1150/1150 mm
Compacta 5022: 500 mm
Compacta 7522: 750 mm
Compacta 1022: 1000 mm
6 bar
230 V / 50 Hz
Pusher unit: Mounted on the infeed of the Compacta. For round products such as cup lids or adhesive tape rolls. Easy to dismantle so that the infeed belt can be used as a feed belt or with a pusher unit, depending on the application. *Utility model protection

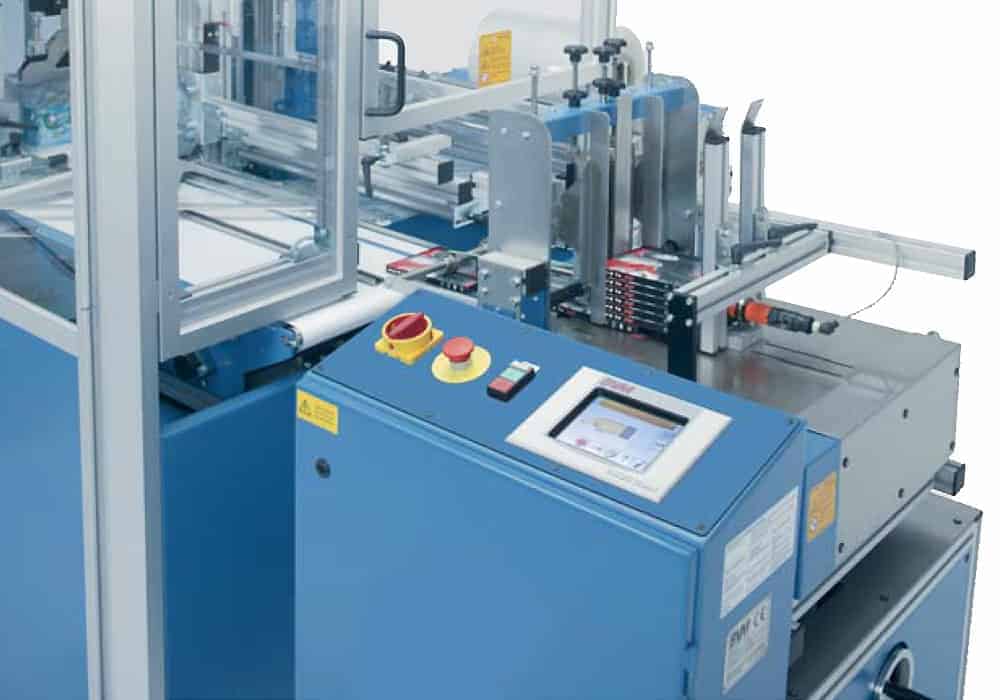

Suction-push feeder A 3535: For feeding products directly onto the infeed conveyor of the packaging machine.Suitable for magazines, catalogs, CDs, DVDs and similar pushable products.
Labeling station : For applying labels, pre-printed or including printing unit, depending on equipment. For processing flat films.

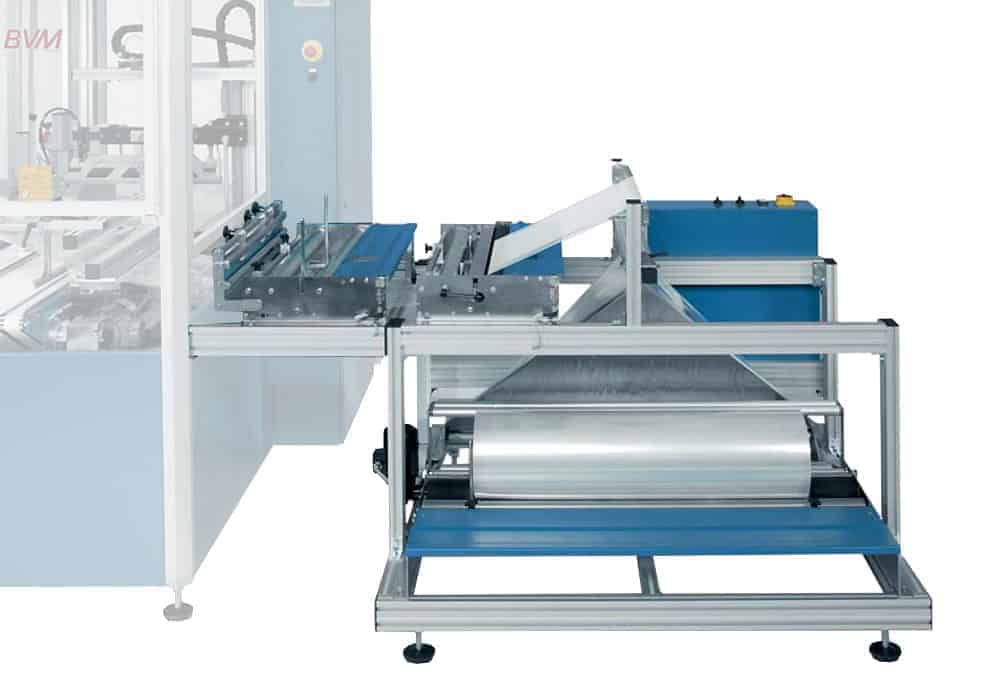

Film folding stand : As a retrofit kit or integrated into the machine ex works. Increased production time due to double capacity per film roll, simplified use of printed film.
Fully automatic film packaging machines are used in various industries for packaging products such as food, medicines, cosmetics, electronic components and consumer goods and are characterized by high efficiency, time savings and consistent packaging quality.
Packaging - As much as necessary,
as little as possible
BVS uses the NaturePak label for products that enable ecologically sound use, reduce CO2 emissions and generate less waste, regardless of the packaging material used.
Our strategy
Packaging made from recycled paper
Paper pays off for people and the environment in the long term. It is even better to use paper with a high recycled content. Recycled paper optimizes water and energy consumption and thus protects the environment and climate by reducing waste. Recycled paper offers a wide range of added value for all users.
Plastic packaging with recycled content
Polyethylene films are increasingly being produced with a proportion of recycled material, which - as far as technically possible - is being continuously increased. They are the most modern and safest quality packaging for all branches of industry. Due to their low density and excellent physical and mechanical properties, PE films have major advantages over paper, cardboard, metal and glass.
