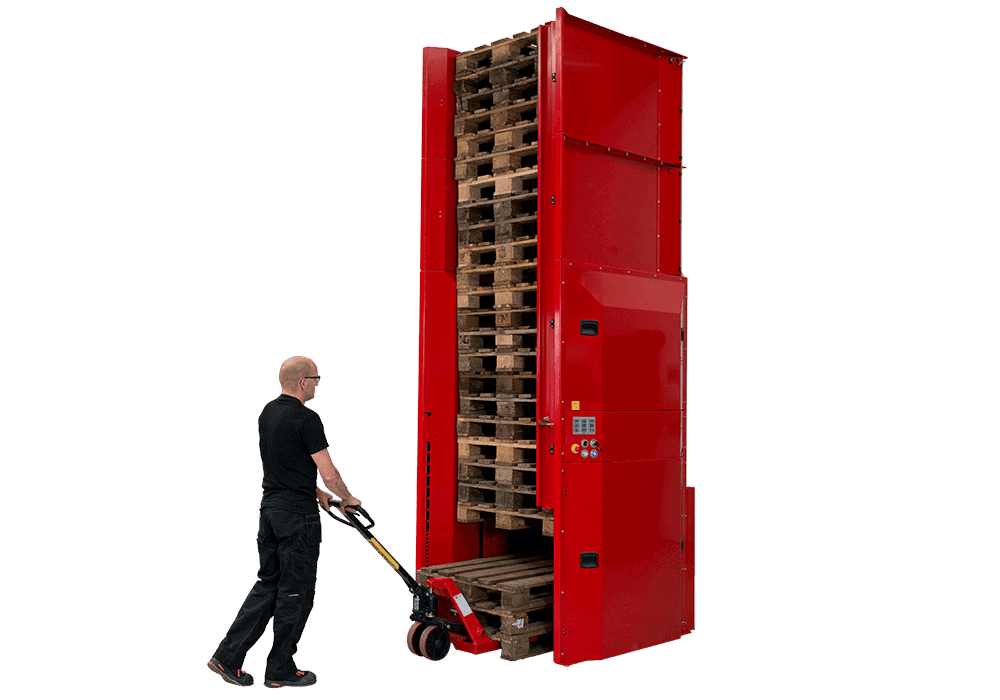

The Pallet Stacker 5 eliminates the need for manual stacking and unstacking of pallets and significantly improves the working environment. Employees no longer have to lift heavy pallets, which increases safety and reduces physical strain. Anyone wishing to purchase a pallet stacker will benefit from automatic pallet handling, which optimizes pallet flow and increases efficiency in the warehouse. Pallets with a capacity of up to 15 or 25 pieces can be loaded and unloaded at ground level using pallet trucks, electric forklifts or forklift trucks. Light barriers recognize each pallet and the pallet stacker decides independently whether to stack or unstack. This automates pallet management, avoids interruptions to production and makes warehouse logistics more efficient and safer overall.
With the pallet magazine 5, the tedious lifting and stacking of pallets is a thing of the past. Your employees can concentrate on their core tasks while the magazine takes over the pallet flow efficiently and safely. This leads to a noticeable reduction in workload for the team and an improvement in working conditions.
Optimize your pallet handling. Contact us for individual advice on the pallet magazine 5.
15 or 25 pallets
A pallet at the same time
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
1490 x 1360 x 2360 mm (15 places)
1490 x 1560 x 2360 mm (15 places)
1490 x 1360 x 3865 mm (25 places)
1490 x 1560 x 3865 mm (25 places)
–
Automatic detection
–
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
220 - 240 V / 50 Hz
Pallet stackers are used in the warehouse/logistics/dispatch sector to make the handling of pallets ergonomic and avoid work-related physical strain.
Stacking capacity
Stacking capacity
15 or 25 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
2 x 15 pallets
Stacking capacity
15 or 25 pallets
Stacking capacity
15 or 25 pallets
Pallet pick-up/drop-off
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
Two pallets at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet size (L x W x H)
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Pallet size (L x W x H)
600 x 800 x 150 mm
Pallet size (L x W x H)
600 x 800 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
2 x 1200 x 800 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Dimensions (L x W x H)
Dimensions (L x W x H)
1490 x 1360 x 2360 mm (15 places)
1490 x 1560 x 2360 mm (15 places)
1490 x 1360 x 3865 mm (25 places)
1490 x 1560 x 3865 mm (25 places)
Dimensions (L x W x H)
935 x 1450 x 2350 mm
Dimensions (L x W x H)
935 x 1450 x 2350 mm
Dimensions (L x W x H)
1520 x 1550 x 2350 mm
Dimensions (L x W x H)
1520 x 1340 x 2350 mm
1520 x 1540 x 2350 mm
Dimensions (L x W x H)
1520 x 1340 x 2350 mm
1520 x 1540 x 2350 mm
Dimensions (L x W x H)
2750 x 1340 x 2350 mm
Dimensions (L x W x H)
1520 x 1340 x 2350 mm (15 places)
1520 x 1540 x 2350 mm (15 places)
1520 x 1340 x 3750 mm (25 places)
1520 x 1540 x 3750 mm (25 places)
Dimensions (L x W x H)
1520 x 1340 x 2350 mm (15 places)
1520 x 1540 x 2350 mm (15 places)
1520 x 1340 x 3750 mm (25 places)
1520 x 1540 x 3750 mm (25 places)
Compressed air
Compressed air
–
Compressed air
–
Compressed air
6 - 7 bar
Compressed air
6-7 bar
Compressed air
–
Compressed air
6 - 7 bar
Compressed air
–
Compressed air
6 - 7 bar
Compressed air
–
Stacking / destacking process
Stacking / destacking process
Automatic detection
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Signal via AGV interface
Stacking / destacking process
Signal via AGV interface
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
AGV interface for signal exchange between Palomat and AGV
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
For signal exchange with external devices (available with and without software)
AGV interface for signal exchange between Palomat and AGV
For signal exchange with external devices (available with and without software)
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
Color
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Operating voltage
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
100 - 240 V / 50 - 60 Hz
Operating voltage
220 - 240 V / 50 - 60 Hz
Operating voltage
100 - 240 V / 50 - 60 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
100 - 240 V / 50 - 60 Hz
Operating voltage
220 - 240 V / 50 Hz
