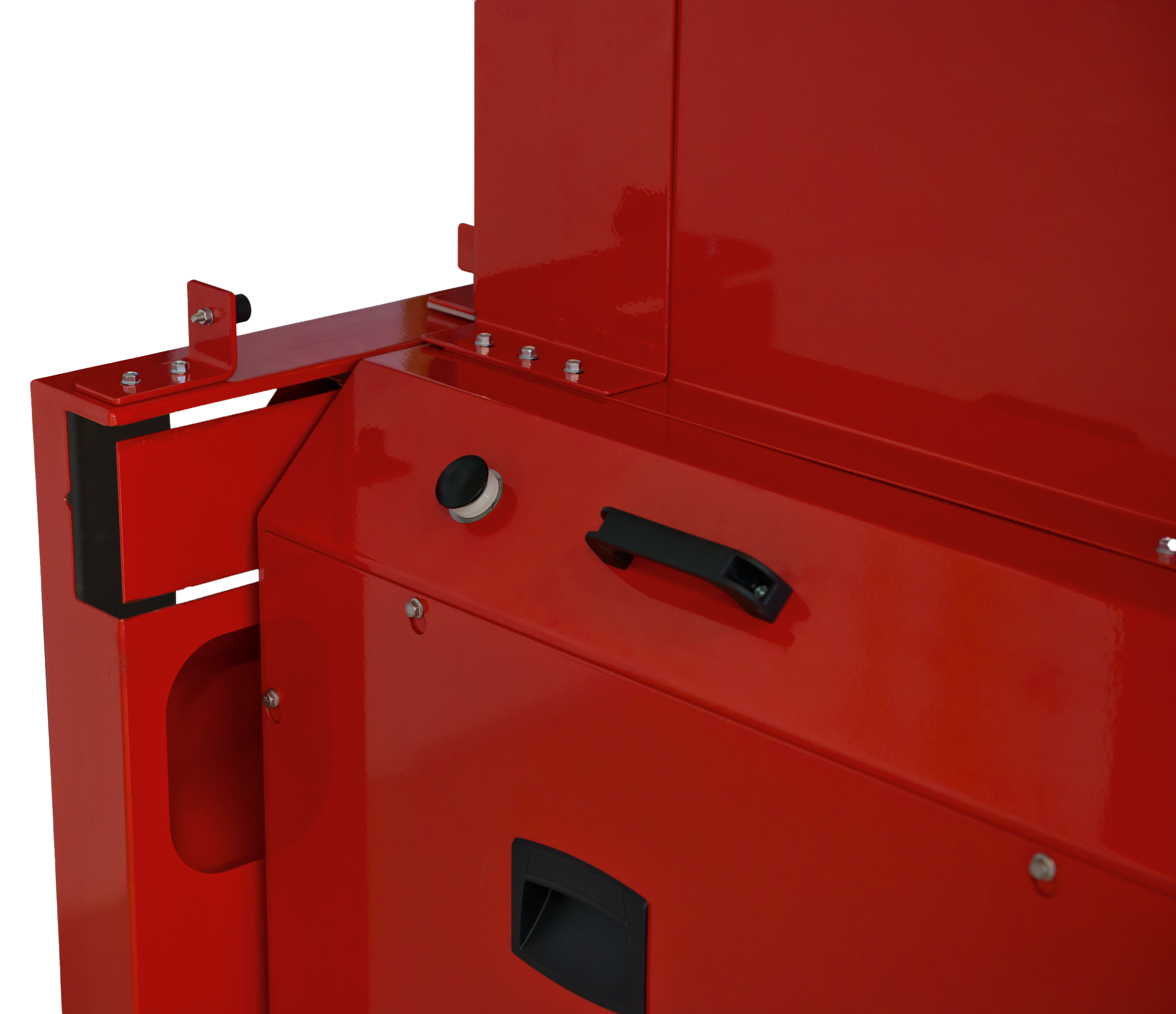

The Adjustable pallet magazine makes your pallet handling simple and efficient. It adapts flexibly to different pallet sizes - 1200 x 800 x 150 mm or 1200 x 1000 x 150 mm - without any tools. Your team simply drives the pallets into the magazine at ground level using a pallet truck, forklift or electric forklift. With the help of light barriers, the magazine recognizes the pallets and stacks or unstacks them fully automatically, individually and one after the other. Up to 15 pallets can be stacked per stack. When switching between stacking and unstacking, you briefly operate the touch panel, after which the system takes over control again.
The Adjustable pallet magazine relieves your team, creates structure and ensures a smooth pallet flow. Each stack is organized automatically, making your day-to-day work safer, more efficient and much more relaxed - an investment that pays off noticeably.
Make your pallet handling more flexible and stress-free! Request your personal consultation on the Adjustable pallet magazine now!
15 pallets
A pallet at the same time
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
1520 x 1550 x 2350 mm
6-7 bar
Manual switching via touch panel when changing
–
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
100 - 240 V / 50 - 60 Hz
Pallet stackers are used in the warehouse/logistics/dispatch sector to make the handling of pallets ergonomic and avoid work-related physical strain.
Stacking capacity
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
15 or 25 pallets
Stacking capacity
15 pallets
Stacking capacity
15 pallets
Stacking capacity
2 x 15 pallets
Stacking capacity
15 or 25 pallets
Stacking capacity
15 or 25 pallets
Pallet pick-up/drop-off
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
Two pallets at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet pick-up/drop-off
A pallet at the same time
Pallet size (L x W x H)
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
600 x 800 x 150 mm
Pallet size (L x W x H)
600 x 800 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm
1200 x 1000 x 150 mm
Pallet size (L x W x H)
2 x 1200 x 800 x 150 mm
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Pallet size (L x W x H)
1200 x 800 x 150 mm (15 places)
1200 x 1000 x 150 mm (15 places)
1200 x 800 x 150 mm (25 places)
1200 x 1000 x 150 mm (25 places)
Dimensions (L x W x H)
Dimensions (L x W x H)
1520 x 1550 x 2350 mm
Dimensions (L x W x H)
935 x 1450 x 2350 mm
Dimensions (L x W x H)
935 x 1450 x 2350 mm
Dimensions (L x W x H)
1490 x 1360 x 2360 mm (15 places)
1490 x 1560 x 2360 mm (15 places)
1490 x 1360 x 3865 mm (25 places)
1490 x 1560 x 3865 mm (25 places)
Dimensions (L x W x H)
1520 x 1340 x 2350 mm
1520 x 1540 x 2350 mm
Dimensions (L x W x H)
1520 x 1340 x 2350 mm
1520 x 1540 x 2350 mm
Dimensions (L x W x H)
2750 x 1340 x 2350 mm
Dimensions (L x W x H)
1520 x 1340 x 2350 mm (15 places)
1520 x 1540 x 2350 mm (15 places)
1520 x 1340 x 3750 mm (25 places)
1520 x 1540 x 3750 mm (25 places)
Dimensions (L x W x H)
1520 x 1340 x 2350 mm (15 places)
1520 x 1540 x 2350 mm (15 places)
1520 x 1340 x 3750 mm (25 places)
1520 x 1540 x 3750 mm (25 places)
Compressed air
Compressed air
6-7 bar
Compressed air
–
Compressed air
6 - 7 bar
Compressed air
–
Compressed air
–
Compressed air
6 - 7 bar
Compressed air
–
Compressed air
–
Compressed air
6 - 7 bar
Stacking / destacking process
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Automatic detection
Stacking / destacking process
Signal via AGV interface
Stacking / destacking process
Signal via AGV interface
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
Stacking / destacking process
Manual switching via touch panel when changing
AGV interface for signal exchange between Palomat and AGV
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
For signal exchange with external devices (available with and without software)
AGV interface for signal exchange between Palomat and AGV
For signal exchange with external devices (available with and without software)
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
AGV interface for signal exchange between Palomat and AGV
–
Color
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Color
RAL 3002 red / 5002 blue / 7032 gray / 7035 gray
Operating voltage
Operating voltage
100 - 240 V / 50 - 60 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 - 60 Hz
Operating voltage
100 - 240 V / 50 - 60 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
220 - 240 V / 50 Hz
Operating voltage
100 - 240 V / 50 - 60 Hz
